AtlasIED RX14-30SFD 3" Mobile Cabinet, 5/8"- 5/8"-1/2" Spacing, 16-Gauge, Includes Casters, Side Handles, and Solid Doors

RX14-30SFD

|

AT-RX1430SFD

Sign In for Dealer Pricing

New to ADI?Become a Customer

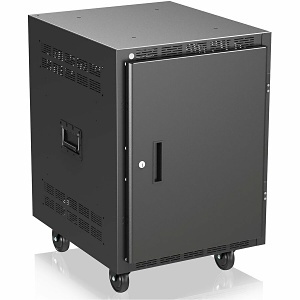

Image of AT-RX1430SFD
Shop all AtlasIED

AtlasIED RX14-30SFD 3" Mobile Cabinet, 5/8"- 5/8"-1/2" Spacing, 16-Gauge, Includes Casters, Side Handles, and Solid Doors

RX14-30SFD | AT-RX1430SFD

Please sign in to view pricing, availability, and to add to cart.

Overview
Specifications
Documents

Product Overview

The RX14-30SFD mobile cabinet is ruggedly constructed of 16-gauge CRS and includes heavy-duty casters. Equipped with a front pair of 11-gauge, CRS adjustable mounting rails tapped 10–32 on standardE.I.A. 5/8"- 5/8"-1/2" spacing.Optional RR14 rear mounting rails are available for additional support. Front-to-rear mounting rail supports have slotted cutouts to easily adjust rail depth and to provide open raceways for containing vertically run wire and cable. Cabinet is 30" deep and has a vertical panel space height of 24 5/8". It features one pair of recessed, hinged, and rubber-padded steel grips on each side (four total) for transport convenience.Easy wiring access is provided through three wire isolation holes (two, 1 1/2" diameter, and one oblong 1 1/2" x 3") in the rear base flange. The units’ four, oversized, heavy-duty casters, two of which are locking, ensure smooth mobility, and have a load capacity of 175 lb. each – 700 lb. total weight capacity.Also include vented and removable locking doors, as well as vented top-front and top-rear flanges. Surface mounting front door is 1" deep to provide clearance for equipment knobs and handles which protrude up to 1 1/2" from the front of the rail. Cabinet is finished in #962 black epoxy.

Main Features

  • 16-Gauge CRS Frame Manufactured to E.I.A. Standards
  • Four, 4" Heavy-Duty Casters (175 lbs cap./ea.)
  • Includes 1 Pair Adjustable, 11-Gauge, Front-to-Rear Mounting Rails
  • Mounting Rail Supports with Slotted Cut-Outs for Vertical Wire Management
  • Perforated Front and Rear Top Flanges, Sides and Rear Door Provide Ventilation and Dissipation of Equipment-Generated Heat
  • Removable Rear Door (Right or Left-Hand Hinging) included
  • RR14 Optional Rear Mounting Rails Available
  • Rubber-Padded Steel Grip "Road Handles" (2 Per Side)
  • Standard Rack Includes Base, Top Panel, Side Panels, Casters, Front and Rear Doors
  • Three, Wire Isolation Holes Located on Bottom of Rear Panel for External Wire Access

General Information

Name: AtlasIED RX14-30SFD 3" Mobile Cabinet, 5/8"- 5/8"-1/2" Spacing, 16-Gauge, Includes Casters, Side Handles, and Solid Doors
Category: AtlasIED, Data Comm & Networking, Pro AV, Racks & Enclosures, Commercial Furniture & Racks, Rack Cabinets & Frames, Rack Cabinets & Frames
UPC Code: 612079185993
Country of Origin: Taiwan, Province of China. Country of origin is subject to change.
